Reventon CV Lucht Heater HC35 34KW 400V 3P

Omschrijving

Reventon CV Lucht Heater HC35-3P 22KW 400V 3P​

The HC3P series air water heater is intended for installation in buildings equipped with a three-phase installation. The device combined with dedicated accessories creates a complete heat distribution system. This solution not only provides an effective way to achieve thermal comfort, but also allows the device to operate economically.

Place to use
The HC3P series water heater is designed for large-volume rooms such as:

• storage rooms,
• halls,
• logistics centers,
• commercial pavilions,
• production lines,
• car repair shops.

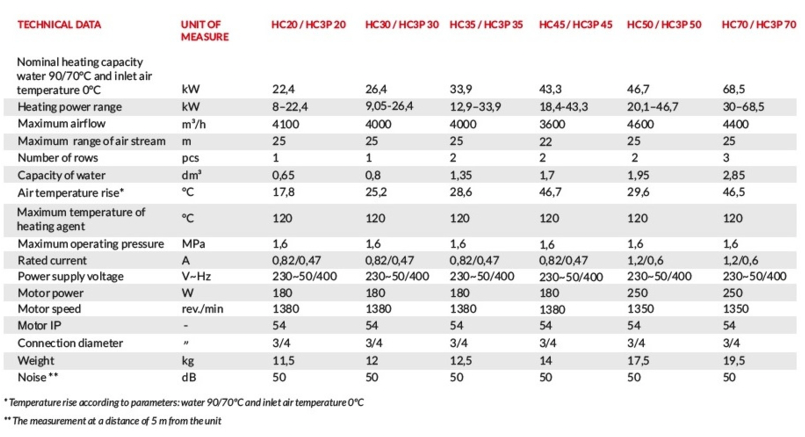

Parameters
Power range: 2 – 80 kW
Weight: 12,5 – 21 kg
Housing: EPP

Additional information:

• The EPP casing is made of environmentally friendly material.
• The heater – depending on the model – has a 1,2 or 3-row heat exchanger.
• The fan of the device with protection degree IP 54 meets the requirements of the European Directive 2009/125 / EC (ErP 2015).

Control
The HC3P series heater combined with its dedicated accessories creates a complete system for controlling the device. This solution not only provides an effective way to achieve thermal comfort, but also allows the device to operate economically.

Benefits

• 1 speed three phase fan,
  quiet and reliable operation,
• environmentally friendly, durable EPP casing,
• easy assembly,
• modern design,
• 24-month manufacturer’s warranty.

Specificaties
