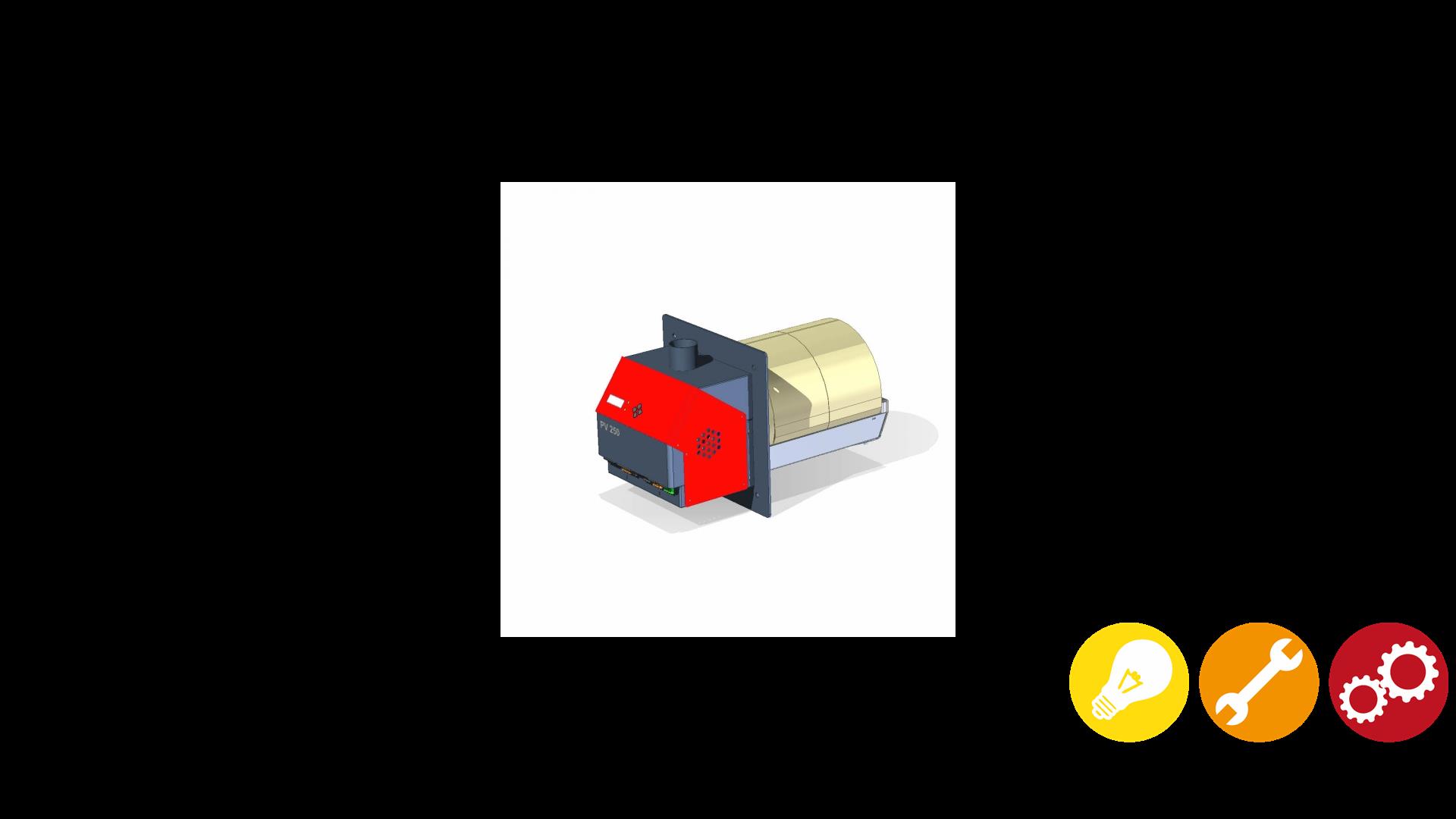

Pelltech brander PV250

Nieuw

Pelltech PV 250

  • Capacity up to 250 kW
  • Certified according to EN 15270:2008
  • Integrated internet module & draft sensor
  • Low emissions due to complete combustion
  • Easy to maintain
  • Automatic ash removal
  • Compatible with different heating appliances
Product:
Pelltech brander PV250
Prijs op aanvraag
Voorraad: 0
  • Verzending door heel Nederland
  • De beste prijs/kwaliteit verhouding
  • Eenvoudig online bestellen
Levertijd: 1-3 weken

Omschrijving

Pelltech Public range burners are fully compatible with oil and steam boilers, baking ovens, driers and other similar systems that require cost effective and sustainable heating solutions. The burners are self cleaning with automated ash removal system. Installation and setup of Pelltech burners is simple and straightforward. Once up and running, our burners require very little maintenance thanks to fully automated control system.

All products have been engineered and tested in accordance with European safety standards.

  • Online monitoring

    Burner internet connection for remote control, data logging and firmware updating


  •

    Fast ignition

    Electrical ignites ensures fast and smokeless ignition


  •

    Fuel level control

    Provides precise fuel dosing and offers a graph of fuel consumption


  •

    Intelligent Power Modulation

    Selects suitable power level according to heat consumption


  •

    Backup battery

    In case of interruption, burning cycle will be finished safely to avoid back burning

  •

    Low Power Consumption

    Optimal power efficiency


  •

    Draught and Lambda control

    Precise draught control with fluegas fan and draught sensor. Lambda control for high burning efficiency.


  •

    Fan Speed Control

    Precise control of fan speed for optimal performance and safety


  •

    User friendly interface

    Intuitive and easy to use interface with comprehensive manual included

Capacity kW 70-250
Fuel   Wood pellets 6...8mm
Maximum fuel consumption kg/h 52
Power output at heat up kW 25
Power output holding flame kW 5
Minimum boiler furnance diameter required mm 600
Minimum boiler furnace lenght required mm 1200
Maximum flue gas amount (at 150C) m3/h 625
Optimal O2 concentration % 4...6
Required chimney diameter with flue gas fan mm ≥ 200
Power consumption at ignition W 440
Power consumption at standby W 7
Power supply   230VAC
Overall dimensions (LxWxH) mm 734 x 450 x 450
Burning chamber dimensions (LxWxH) mm 458 x 358 x 388
Burner weight kg 80
