Pelltech brander PV1500

Nieuw

Pelltech PV 1500

  • Capacity up to 1500 kW
  • Smart power modulation
  • Internet module for remote access & control
  • Integrated draft sensor
  • Low emissions
  • Automatic ash removal
  • Compatible with different heating appliances
  • Easy to maintain
Product:

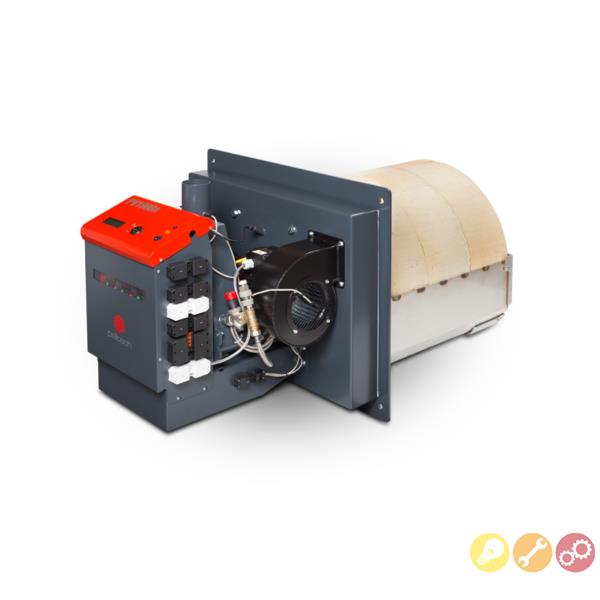

Pelltech brander PV1500
Prijs op aanvraag
Voorraad: 0
  • Verzending door heel Nederland
  • De beste prijs/kwaliteit verhouding
  • Eenvoudig online bestellen
Levertijd: 1-3 weken

Omschrijving

PV1500 pellet burner serves an effective and inexpensive  heating solution. It can be applied for different kind of heating systems such as oil and solid fuel boilers, steam boilers, hot air dryers and evaporators.

The burner is fully automated with an integrated control system. PV1500 is not only easy to set up but also easy to maintain. Automatic cleaning system provides stable burning conditions and efficient combustion over long working periods. In order to withstand high temperatures the burning chamber is surrounded with ceramic tiles.

By developing our products we put extra emphasis on safety. For instance there is a backup battery and sprinkler/powder system among other safety devices. All industrial burners are equipped with internet module as standard. Therefore it is possible to upgrade the software, observe and control the burner online.

This product has been engineered and tested in accordance with European safety standards.

  • Online monitoring

    Burner internet connection for remote control, data logging and firmware updating


  •

    Fast ignition

    Electrical ignites ensures fast and smokeless ignition


  •

    Fuel level control

    Provides precise fuel dosing and offers a graph of fuel consumption


  •

    Intelligent Power Modulation

    Selects suitable power level according to heat consumption


  •

    Backup battery

    In case of interruption, burning cycle will be finished safely to avoid back burning

  •

    Low Power Consumption

    Optimal power efficiency


  •

    Oil & Gas Boiler Compatibility

    Similar electric and mounting connections; easy to adapt with various models


  •

    Fan Speed Control

    Precise control of fan speed for optimal performance and safety


  •

    User friendly interface

    Intuitive and easy to use interface with comprehensive manual included

Capacity kW 250-1500
Fuel   Wood pellets 6...8mm
Maximum fuel consumption kg/h 312
Power output at heat up kW 150
Power output holding flame kW 20
Minimum boiler furnance diameter required mm 850
Minimum boiler furnace lenght required mm 2700
Maximum flue gas amount (at 200C) m3/h 3900
Optimal O2 concentration % 3...6
Required chimney diameter mm ≥ 400
Power consumption at ignition W 1600
Power consumption at standby W 20
Power supply   3x400 VAC, 10A
Overall dimensions (LxWxH) mm 1483x890x780
Burning chamber dimensions (LxWxH) mm 820x768x656
Pellet inlet diameter mm 76
Burner weight kg 300
